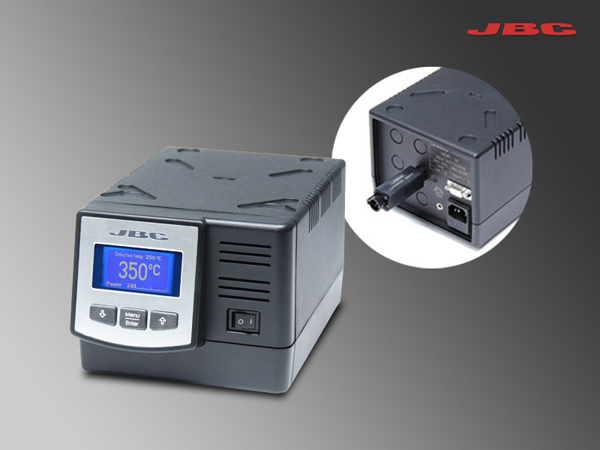

DDR - DD for Robot

Ref. DDR-1B 120V, DDR-2B 230V, DDR-9B 100V

The DDR is a DD control unit that suits perfectly to any robotic production system.

Tools are connected via a converter which guarantees the performance of sleep and hibernation features.

The DDR has an USB connector and a RS-232 output with protocol for robots and PCs communication.

It also incorporates the menu with over 20 parameters to personalize.

This control unit works simultaneously with one or two tools that are compatible to hundreds of

Composition

Control Units:

Tools:

Weight

3.6 kg (7.8 lb)

Size

145x120x225 mm

Voltage(AC)

230V / 120V / 100V

Input Fuse

2A (230V), 4A (120V and 100V)

Output Peak Power

150W / 23.5V

Temperature selection

90-450 ºC / 190-840 ºF

Tip to ground resistance

<2 ohms

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

USB interface station-PC

Package weight

3.9 kg (8.6 lb)

Package dimensions

280x205x210 mm
