DSS - Micro Desoldering

Ref. DSS-1B 120V, DSS-2B 120V, DSS-9B 100V

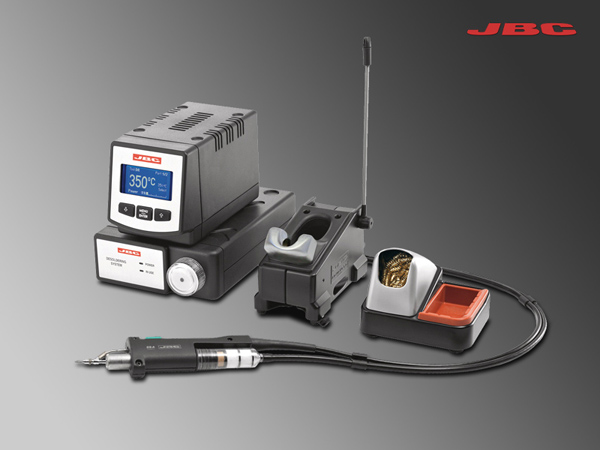

DSS station is designed for desoldering small and medium-sized insertion components.

The MS electric suction module creates a vacuum peak at the startup.

It incorporates the JBC exclusive heating system, even the intelligent sleep and the hibernation feature.

Through the menu you can customize more than 20 functionalities.

Although DI suits any of JBC tools, DSS station works with DS360-A desoldering iron.

Composition

Control Units:

DI, MS-A

Tools:

DS360-A

Accessories:

CL9885

Features

Weight

5.6 kg (12.3 lb)

Size

See individual modules

Voltage(AC)

230V / 120V / 100V

Input Fuse

1A (230V), 2A (120V and 100V)

Output Peak Power

130W / 23.5V

Temperature selection

90-450 ºC / 190-840 ºF

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2mV RMS

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

USB interface station-PC

Vacuum

75% / 570mmHg / 22.4inHg

Flow rate

9 SLPM

Package weight

6.4 kg (14.2 lb)

Package dimensions

370x370x200 mm

Documentation

Manuals:

DI Manual
Electric Desoldering Pump Manual
Stands Manual
DS360-A Manual
Tip Cleanning Stand Manual

Exploded View:

Exploded View Serie 139783
Exploded View Serie 142334
