DIT Prémium forrasztó állomások

Ref. DIT-1B 120V, DIT-2B 230V, DIT-9B 100V

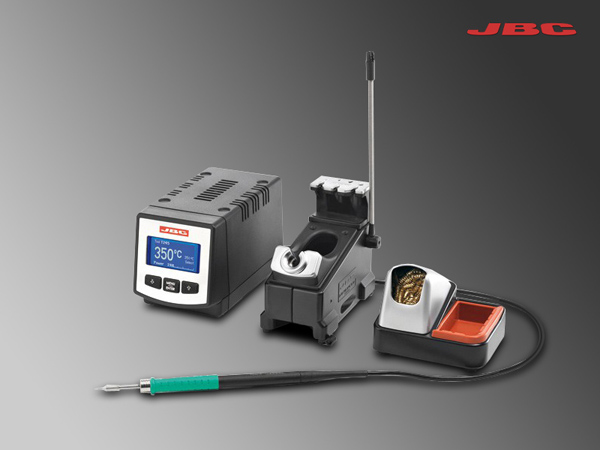

The DIT soldering station is designed for industrial electronic applications with medium and high power requirements.


It incorporates the JBC exclusive heating system that increase the work efficiency thanks to the fast temperature recovery.


The intelligent sleep and the hibernation features extend a tip´s life more than 5 times.


Using the menu you can personalize more than 20 functions to help manage the soldering process.


Although its DI control unit can be connected to any of JBC tools, the DIT station works with the lightest and ergonomic T245-A handpiece and C245 cartridge.


Composition


Control Units:
Tools:
Cartridges:
Accessories:

Features


Weight
4.4 kg (9.6 lb)
Size
See individual modules
Voltage(AC)
230V / 120V / 100V
Input Fuse
1A (230V), 2A (120V and 100V)
Output Peak Power
130W / 23.5V
Temperature selection
90-450ºC / 190-840ºF
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2mV RMS
Ambient operating temp.
10-40ºC / 50-104ºF
ESD Safe

USB interface station-PC


Package weight
5.2 kg (11.5 lb)
Package dimensions
370x370x200mm



Connectable tools Részletes információk »




T245-A - pákanyél



Cartridges Részletes információk »




C245 - Pákabetétek
