DDVT - Pneumatic Rework

Ref. DDVT-1B 120V, DDVT-2B 230V, DDVT-9B 100V

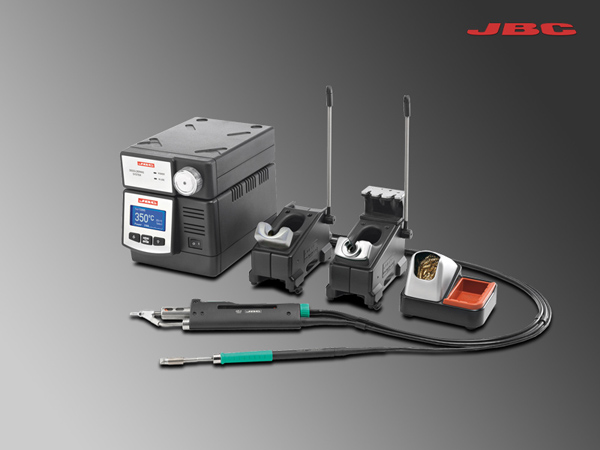

The DDVT station is a complete solution to repair and rework electronic circuits fast and safe.


The DD 2 tools control unit manages the tip temperature and the MV pneumatic suction module sucks the solder.
It is required available compressed air at the operator´s bench.


It incorporates the JBC exclusive heating system, even the intelligent sleep and the hibernation feature.


Using the menu you can personalize more than 20 functions to manage the soldering process.


Although other JBC tools suit the unit, the DDST station works simultaneously with the DR560 desoldering iron and the T245 handpiece.


Composition


Control Units:
Tools:
Cartridges:
Accessories:

Features


Weight
8.5 kg (18.8 lb)
Size
See individual modules
Voltage(AC)
230V / 120V / 100V
Input Fuse
1A (230V), 2A (120V and 100V)
Output Peak Power
150W / 23.5V
Temperature selection
90-450 ºC / 190-840 ºF
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2mV RMS
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD Safe

USB interface station-PC

Air pressure
3 - 6 Bar
Vacuum
90% / 680mmHg / 26.8inHg
Flow rate
15 SLPM

Package weight
9.6 kg (21.2 lb)
Package dimensions
475x370x195 mm


Connectable tools Részletes információk »




T245-A - pákanyél


DR560-A - Desoldering Iron



Cartridges Részletes információk »




C245 - Pákabetétek


C560 - Pákabetétek
