DDST Electrical Rework

Ref. DDST-1B 120V, DDST-2B 230V, DDST-9B 100V

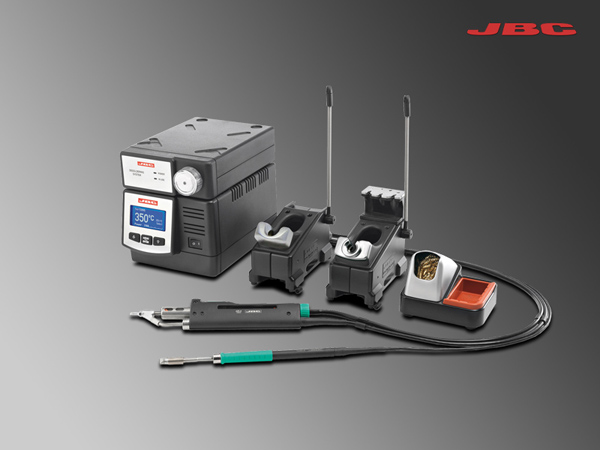

The DDST station is a complete solution to repair and rework electronic circuits fast and safe.

The DD 2 tools control unit manages the tip temperature and the MS electric suction module sucks the solder.

It incorporates the JBC exclusive heating system, even the intelligent sleep and the hibernation feature.

Using the menu you can personalize more than 20 functions to manage the soldering process.

Although other JBC tools suit the unit, the DDST station works simultaneously with the DR560 desoldering iron and the T245 handpiece.

Composition

Control Units:

DD, MS-A

Tools:

T245-A, DR560-A

Cartridges:

C245906, C560003, C245903

Accessories:

CL9885

Features

Weight

9.1 kg (20 lb)

Size

See individual modules

Voltage(AC)

230V / 120V / 100V

Input Fuse

2A (230V), 4A (120V and 100V)

Output Peak Power

150W / 23.5V

Temperature selection

90-450 ºC / 190-840 ºF

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2mV RMS

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

USB interface station-PC

Vacuum

75% / 570mmHg / 22.4inHg

Flow rate

9 SLPM

Package weight

10.2 kg (22.4 lb)

Package dimensions

475x370x195 mm

Documentation

Manuals:

DD Manual
Electric Desoldering Pump Manual
Stands Manual
DR560-A Manual
Handpieces Manual
Tip Cleanning Stand Manual

Exploded View:

Exploded View Serie 139783
Exploded View Serie 141773
