CF Forrasz-adagoló állomás

Ref. CF-1B 120V, CF-2B 230V, CF-9B 100V

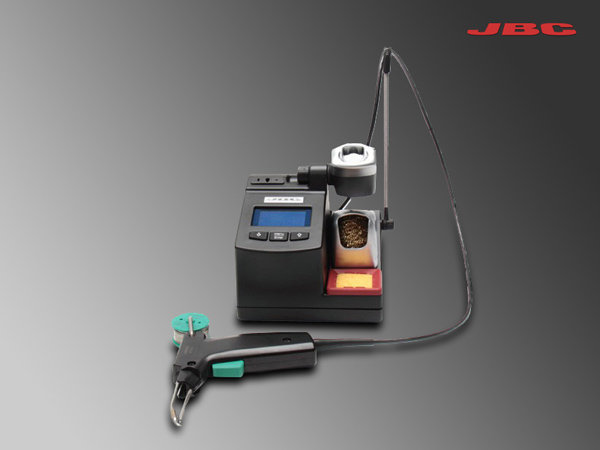

The CF is a soldering station for intensive jobs which allows you to work single-handely.

It incorporates the JBC exclusive heating system that increase the work efficiency thanks to the fast temperature recovery.

The intelligent sleep and the hibernation feature enable to extend tip's life more than 5 times.

Using the menu you can personalize more than 20 functions to help manage the soldering process.

CF works with the comfortable AP130 solder feed iron and C130 cartridges.

Compact stations feature all the necessary accessories to make your job easier.

Composition

Tools:

Cartridges:

Weight

2.8 kg (6.2lb)

Size

150x175x145mm

Voltage(AC)

230V / 120V / 100V

Input Fuse

1A (230V), 2A (120V and 100V)

Output Peak Power

130W / 23.5V

Temperature selection

90-450ºC / 190-840ºF

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2mV RMS

Ambient operating temp.

10-40ºC / 50-104ºF

ESD Safe

Diameter of Solder Wire

0.8-1 mm (0.03-0.04 in)

Package weight

3.1kg (6.8 lb)

Package dimensions

235x235x260mm

Manuals:

CF Manual
AP130-A Manual

Brochures:

Exploded View:

Exploded View
