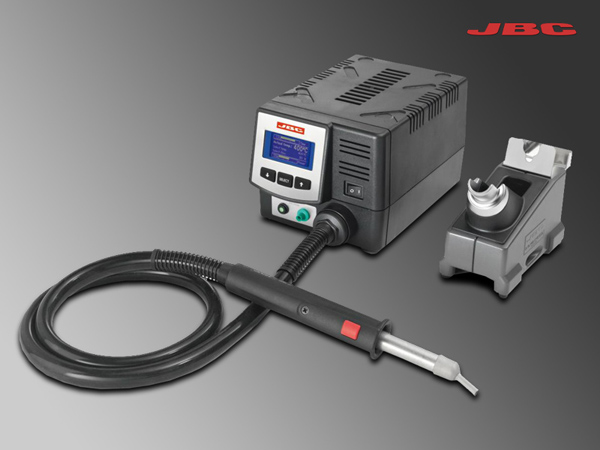

JT-Q Hot Air Station

Ref. JT-1QA 120V, JT-2QA 230V, JT-9QA 100V

The JT is a high power hot air station to repair quick and safe all types of SMD electronic components, even the biggest QFPs and PLCCs.

The unit features two work modes -manual or profile- and manages efficiently the temperature and the hot air flow.

Using the menu it is possible to customize more functions for the process.

The station works with JT-TA heater and its corresponding stand with a quick nozzle changer.

JT-Q version does not include the extractors desk.

Composition

Hot Air:

Stands:

Weight

4.2 kg (9.2 lb)

Size

See individual modules

Voltage(AC)

230V / 120V / 100V

Input Fuse

4A (230V), 8A (120V and 100V)

Output Peak Power

1000W

Temperature selection

Tamb - 450º C / Tamb - 850 ºF

Ambient operating temp.

10-40 ºC / 50-104 ºF

ESD Safe

Air Flow Range

6 - 45 SLPM

Package weight

5.3 kg (11.6 lb)

Package dimensions

475x370x200 mm

Manuals:

Exploded View:
